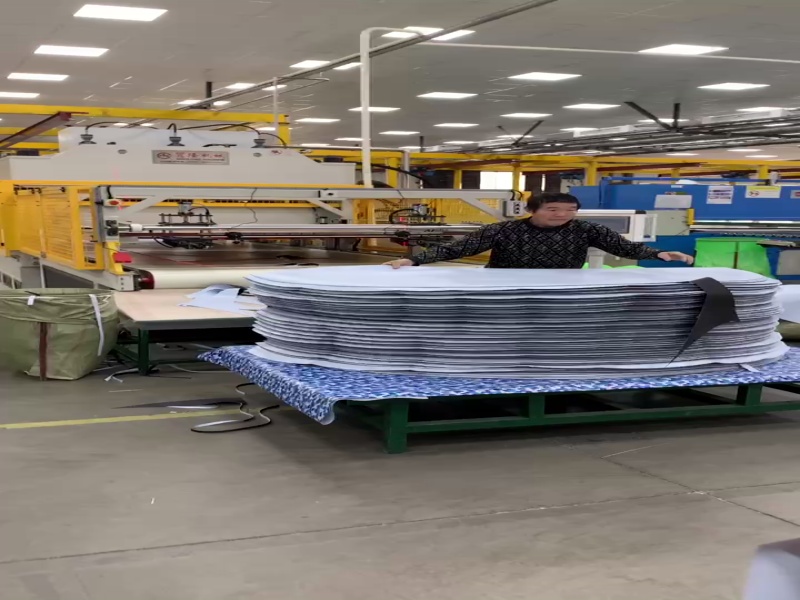

ABC-2000 Hydraulic Cutting Machine for Inflatable Blow Up Items

Main Parts	Brand
Intermediate Relay	Idec
Cocontactor	Teco
Sealing Element	Parker
Oil Pump	YONGLING
Quick Oil Cylinder	Mingsheng
Solenoid Valve	NORTHMAN
PLC	Mitsubishi
Display Screen	WEINVIEW
Operating Switch	Schneider
Motor	DEDONG
Servo motor	SOYA
Main cylinder	SMC
Pneumatic alve	SMC
Conveyer belt	CHIORINO
Note: if the product market supply reason, can use similar quality equivalent brand product replacement.

Mechanical capacity：

1.Double oil cylinder,precise four-column double-link connection rod automatic balance structure.Ensure the accuracy of the cutting depth of each cutting position is 0.02 mm, four-column surround fine-tuning mechanism, hydraulic system control, ensure the die-cutting speed and precision of the machine, all the sliding connection parts adopt the central oil supply automatic lubricating device, which puts the wear to a minimum.

2.Cutting head decelerate automatically in front of the cutting knife 10 mm, when it cuts multilayer material, no size error between the top and bottom layers.

3.The cutting balance degree of machine is precision,which can reduce the loss of die cutter greatly, cutting edge has a better effect, reduce the consumption of the cutting board.

4.Transmission part use the Japanese mitsubishi PLC control, driven  the material from one side of the machine input by servo motor, after die cutting,output from the other side,ensure feeding accuracy, smooth operation; And feed length can be adjusted through the touch screen conveniently.Display the fault information for easy maintenance.

5.Servo motor controls feeding and receiving error range to ± 0.02.

6.The special mold setting mechanism makes the travel adjustment simple and accurate in conjunction with die cutter and cutting depth.

The central automatic lubrication system can guarantee the machine precision and enhance machine durability.

8.Machine equipped with infrared photoelectric safety device, equipped with safety protective isolation cover, make the operation more secure.

9.Die cutter fixed clamping device,which makes replacement of die cutter convenient and quick.

10.Material input and output are both on the conveyor belt , and material of the die cutting blanking is done automatically on the conveyor belt.

11.Machine adopts surround structure,which can improve the cutting precision and efficiency.

12.Hydraulic system: double oil cylinders work at the same time.The fuel tank is equipped with cooling device,oil and energy storage device,oil filter device.The machine is equipped with a pressure display device.

13.Mechanical feeding device is equipped with automatic deviation correcting device, and the Infrared Ray controls the rectifying deflection.

14.The machine is equipped with automatic deviation correcting feeding device.
