Hydraulic Swing Arm Cutting Machine

Item

Description

Unit price
(USD/pcs)

Qty

Amount
(USD)

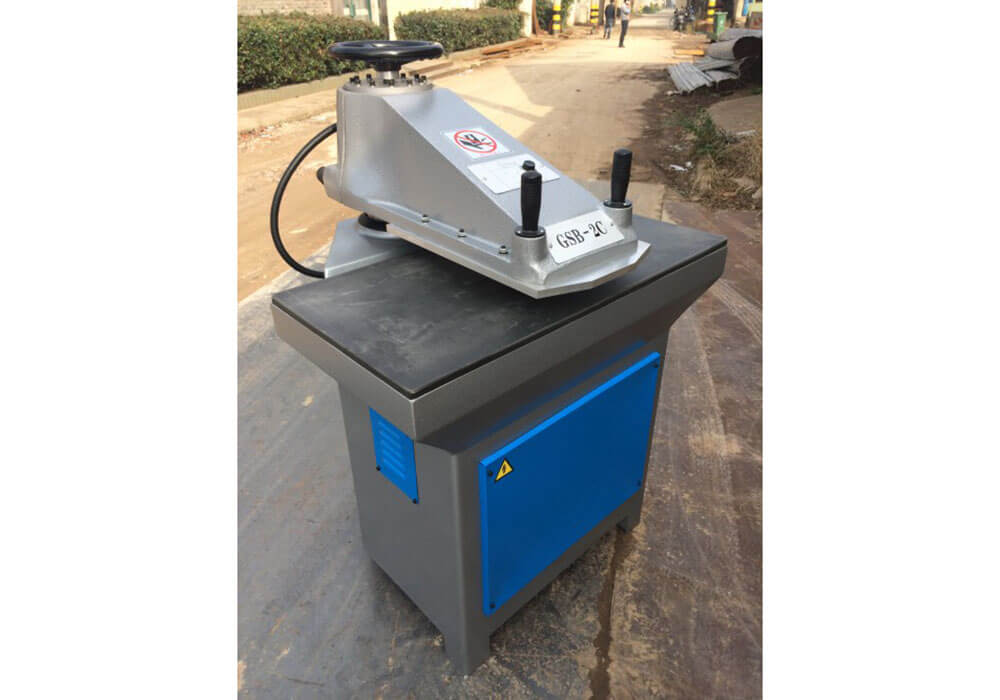

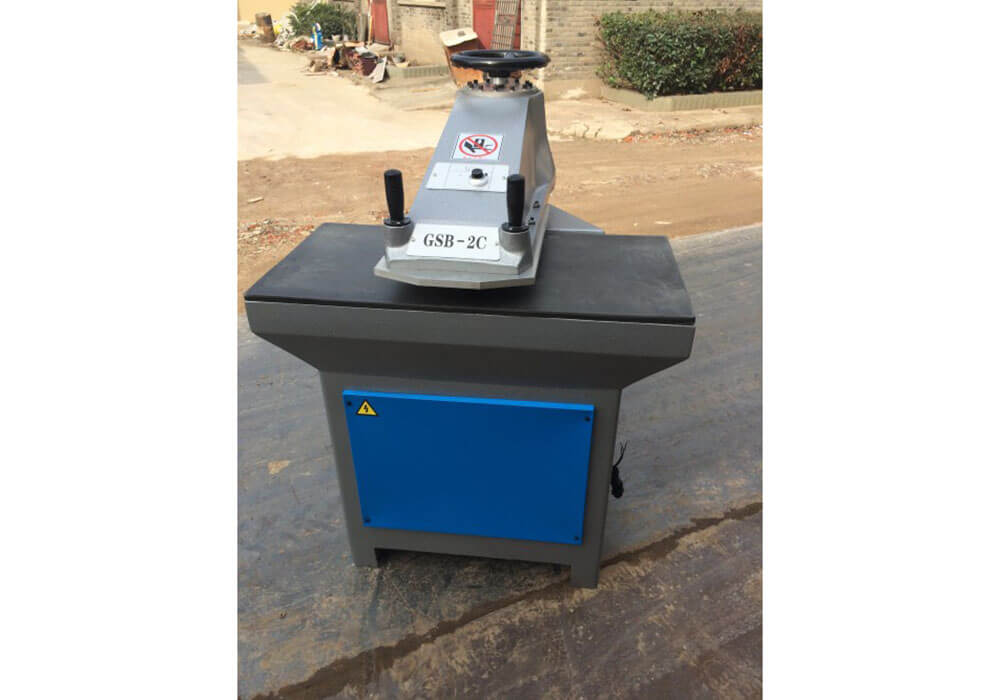

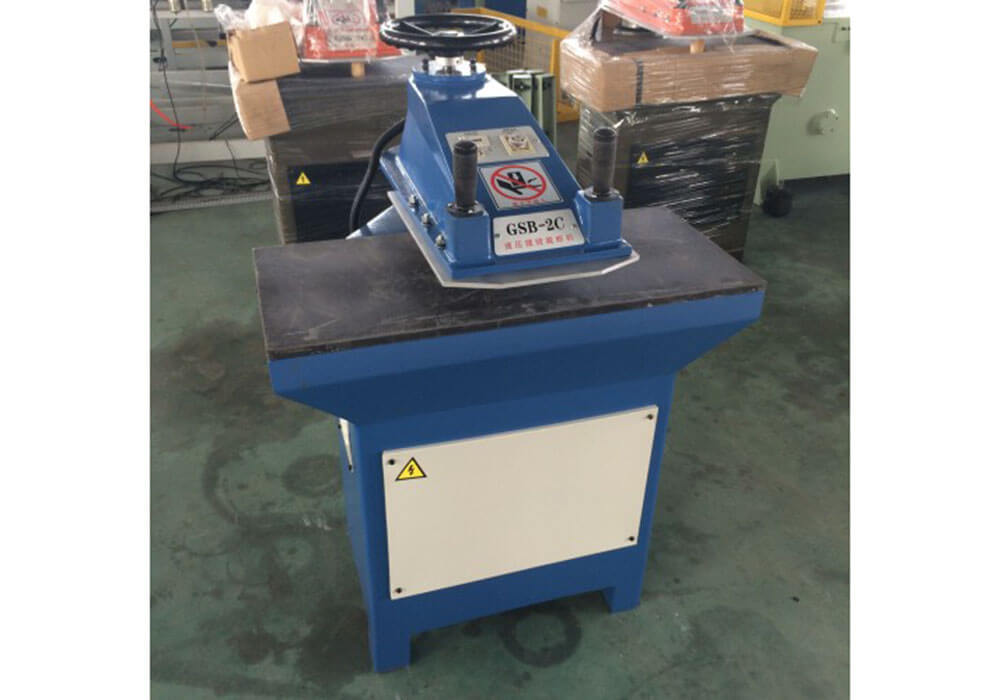

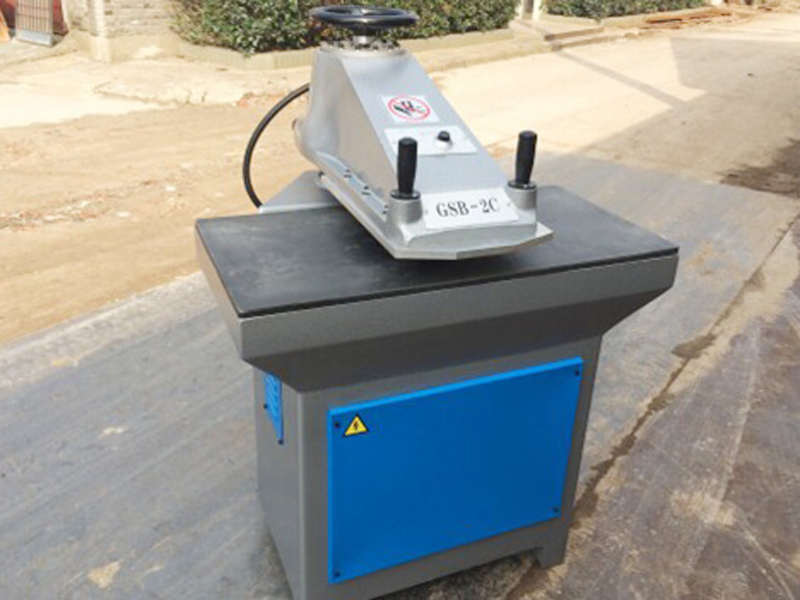

Hydraulic swing arm cutting machine

Model:SBH-2C
Max Cutting Force:12T
Stroke Adjustment:5-50mm
Distance between press board and table:60-130mm
Press Board:405*305mm
Cutting Table:800*400mm
Motor Power:0.75kw
Power:three phase 380V 50Hz
Package Size:840*810*1450mm
Gross Weight:380KG
(cast iron with aluminum head)

Cutting board

Cutting Board for SBH-2C
Size: 800*400*18mm

1. It is mainly used for the forming cutting of various kinds of fur,leather,rubber,plastic and cotton textile material.
2. It's easy to operate it with rocker arm which can rotate freely.
3. Set up the column is made of high quality seamless steel tube processing, with two holes bearing, ensure the strike plate on flexible rotation, good reliability.
4. Using both hands switch operation, ensure the safety of the operation staff.
5. Using the inertia of the flywheel energy storage section, less energy.

Remark

1.Trade terms: FOB Shanghai.
2.Payment Term: T/T, Buyer shall pay 40%of the total amount in advance,and pay the balance before shipment.
3.Loading time: 7-10days after receiving the advance payment.

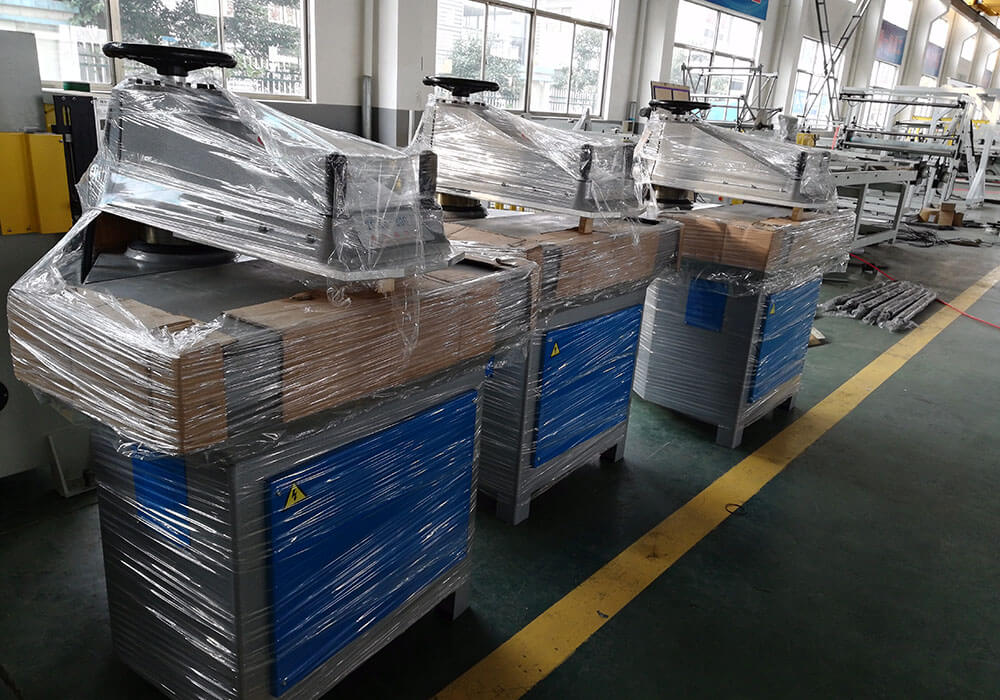

4.Package: standard plywood case.
